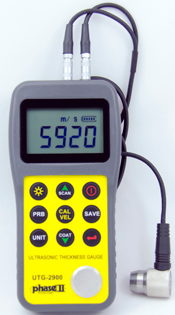

NEW! Ultrasonic Thickness Gauge
Model No. UTG-2900
Our new State of the art, digital ultrasonic thickness gauger is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
|
Specifications:
|
Model No. UTG-2900 |
Display type |
4.5 -digit LCD w/Back Light |
Minimum display unit |
0.001"/0.01mm (selectable) |
Measuring Range |
Pulse-Echo: 0.025" -23.0" in steel
Echo-Echo: .118" -3.50"
Can measure up to 90mm(3.5") of steel while going through 900 micron (.035") (35mils) of coating.
|
Accuracy |
+/- (0.5% thickness + .001") |
Sound velocity range |
3280-32805 ft/s (1000-9999m/s) |
Upper/Lower Limit Preset
Alarm |
Yes |
Scanning Feature |
Yes, 16 measurements/second |
Operating temperature |
32-122 degrees F |
Frequency |
5MHz |
Update range |
4Hz |
Memory |
20 Groups (100 files/group) |
Output |
USB |
Power supply |
AA alkaline batteries (2pc) |
Battery life |
Approx. 100 hours (w/backlight
off) |
Power consumption |
Working current is less than
3V |
Dimensions |
5.90" x 2.91" x
1.30" (150 x 74 x 33mm) |
Weight |
8.6oz (245g) |
|
|
|
|
|
UTG-2900 ultrasonic thickness gauge comes complete with Base Instrument, 5MHz Echo-Echo Probe,
2oz Bottle of couplant gel, Data Output Software, USB Cable, Certificate of Calibration, Operation Manual and Custom Carry Case.
|
